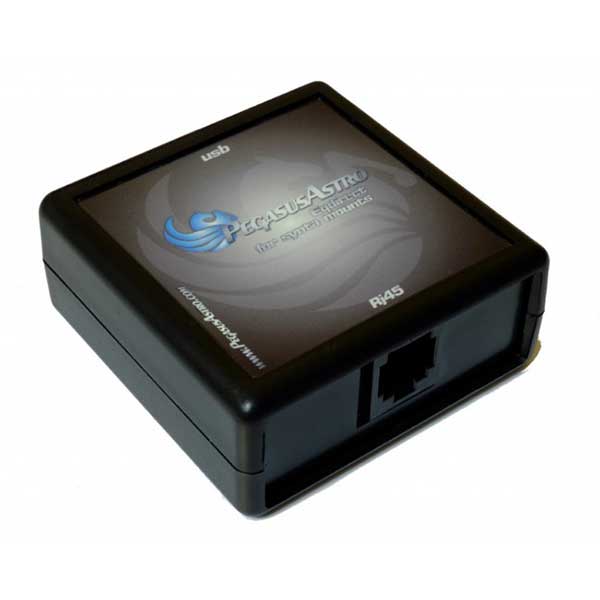

Our new compact EQDir Adapter for EQMOD allows direct connection of Skywatcher HEQ5 Syntrek/PRO, NEQ6 Syntrek/PRO, AZ EQ6-GT and EQ8 mounts to your PC or laptop. With this adapter you can remote control your Skywatcher mount directly via PC. No handbox controller is needed and the device is perfect for remote observatories

• EQDIR heart is based on FTDI USB to Serial Chip

The device uses the original FTDI FT232RL chip. This chip is fully compatible and functional with Windows XP, 7 , 8, 10, OSX, Linux. There is no need to install external drivers as Windows Update will install the latest FTDI driver. Just plug it in your PC and play.

• Led indication

A red LED (operation indicator) exists on the side of the device. It will turn on when the device is plugged in the equatorial mount.

• EQDIR adapter can use both cables (DB9 or RJ45 Connectors)

First socket is DB9, Second socket is RJ45

Choose the appropriate cable (DB9 or RJ45) for your mount model. You can use the same device in both of your mounts. Just attach the specified cable for your mount model (DB9 or RJ45)

• TECHNICAL SPECIFICATIONS

Mount Connector: RJ45

Bluetooth Specs (Bluetooth Model only): Bluetooth v2.1 version

Name / ID: PA-EQDIR-XXXX (Where XXXX the unique identifier of the device) , Baud rate: 9600 , Pairing code / password: 1234

Effective distance of operation: 10 meters

Cable to mount: RJ45 to RJ45 or RJ45 to DB9

Dimensions: 66 mm x 66 mm x 28 mm

• In the box:

EQDir Adapter Device

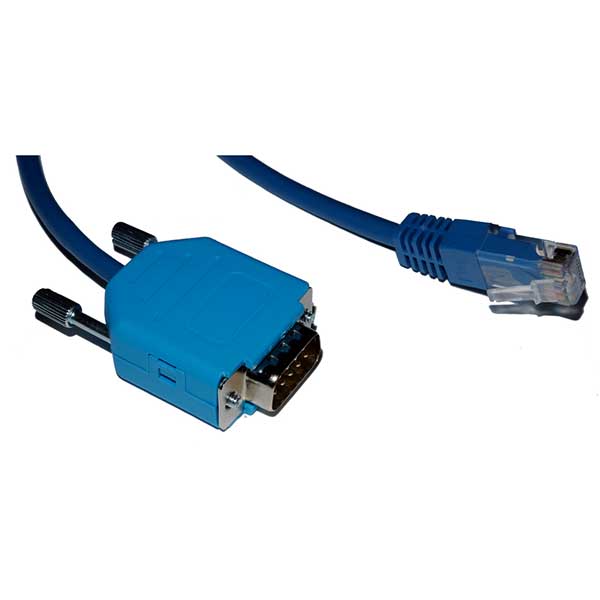

Cable RJ45 to DB9 or RJ45 to RJ45
